Refurbished Pedigo 500 Pediatric Stretcher Crib
In stock
$2,850.00
Fully Refurbished
1-Year Warranty
Biomed Tested & Calibrated
Complete Working System
- 200 lb (91 kg) maximum patient weight • for children up to 35 in (89 cm) tall
- One-handed side rails • Fowler and Trendelenburg positioning • 5" casters
- Refurbished • 1-Year Warranty Included • United Infusion SKU 500-001
Refurbished Pedigo 500 Pediatric Stretcher Crib
Refurbished • 1-Year Warranty Included • Pediatric Crib Stretcher • United Infusion SKU 500-001

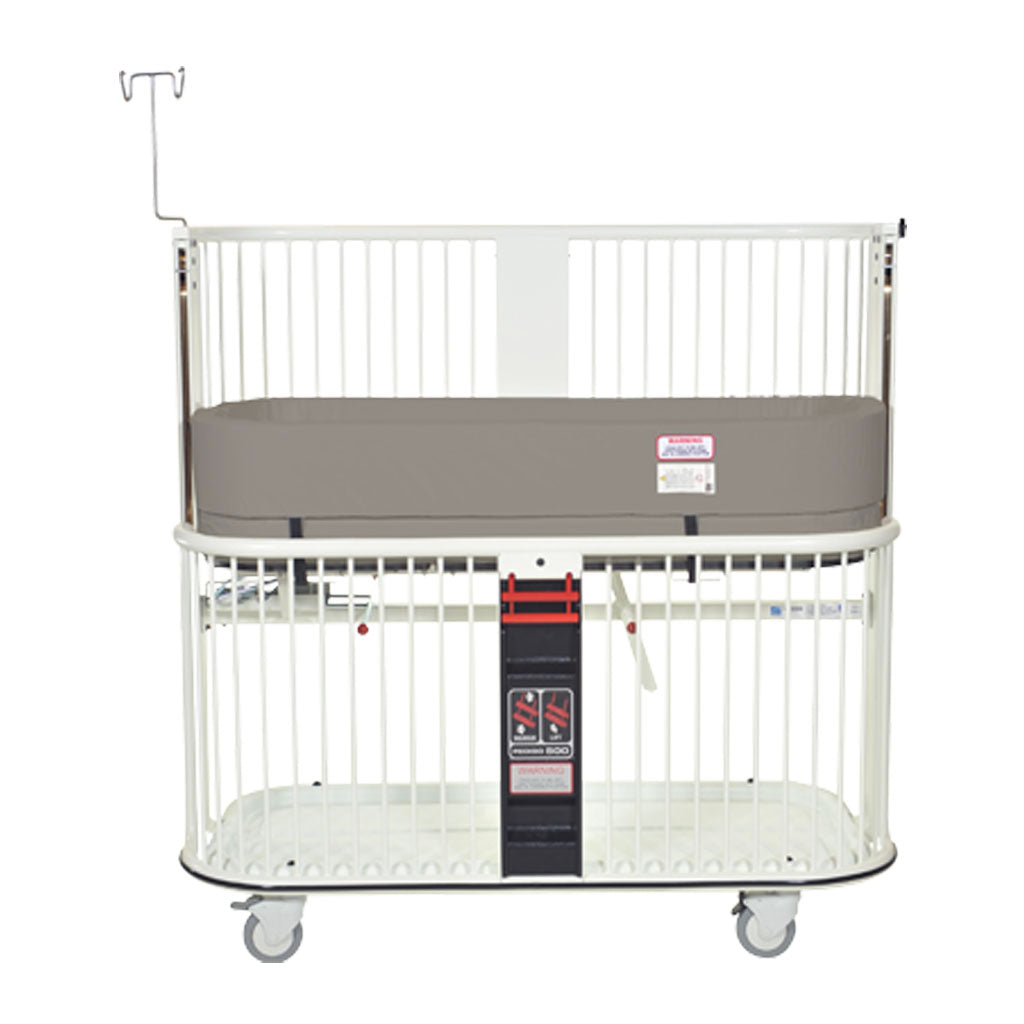

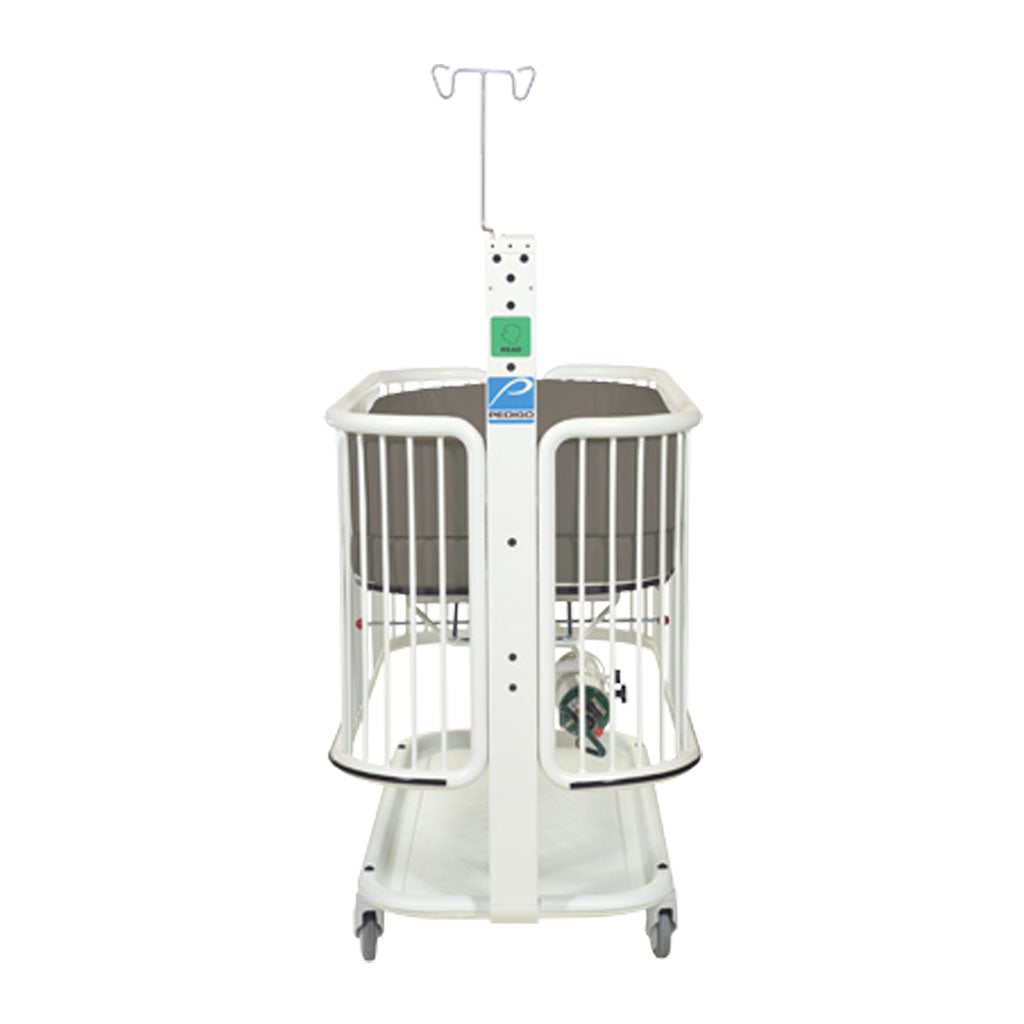

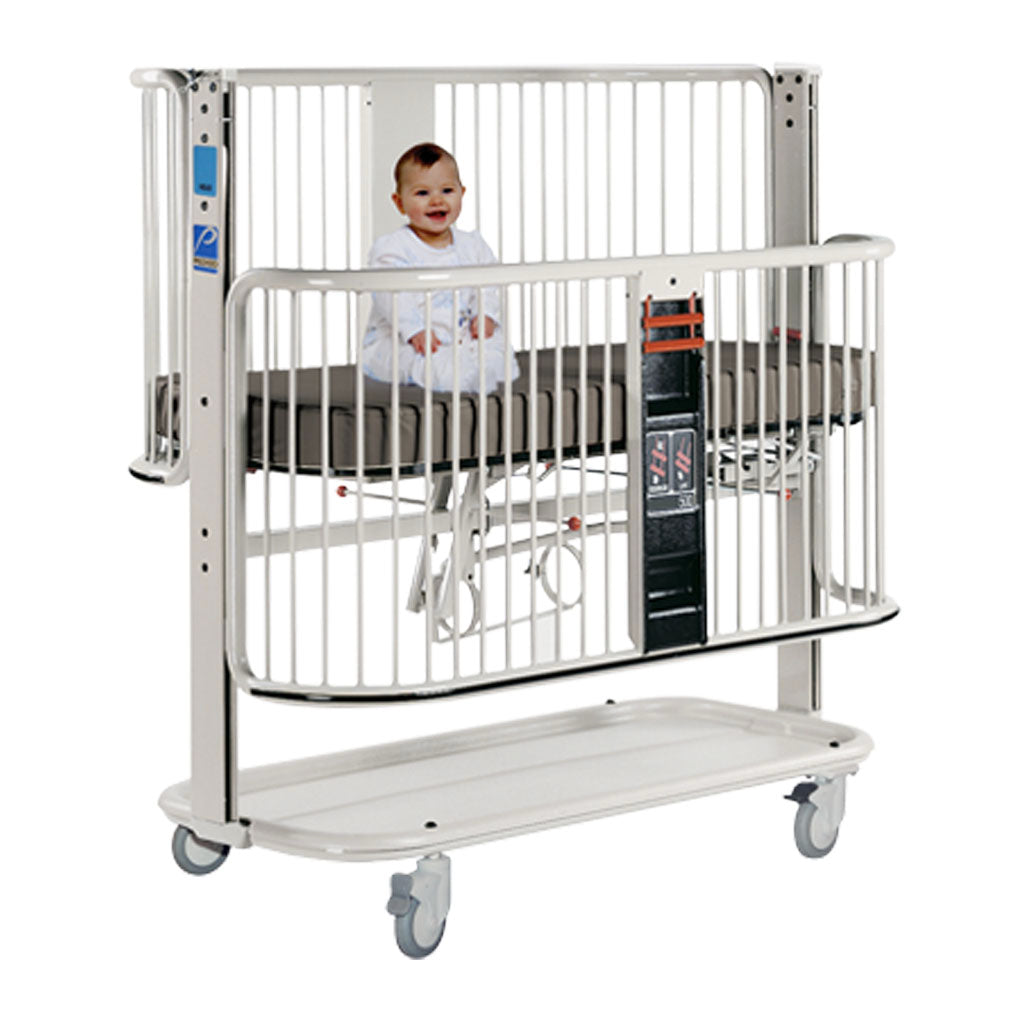

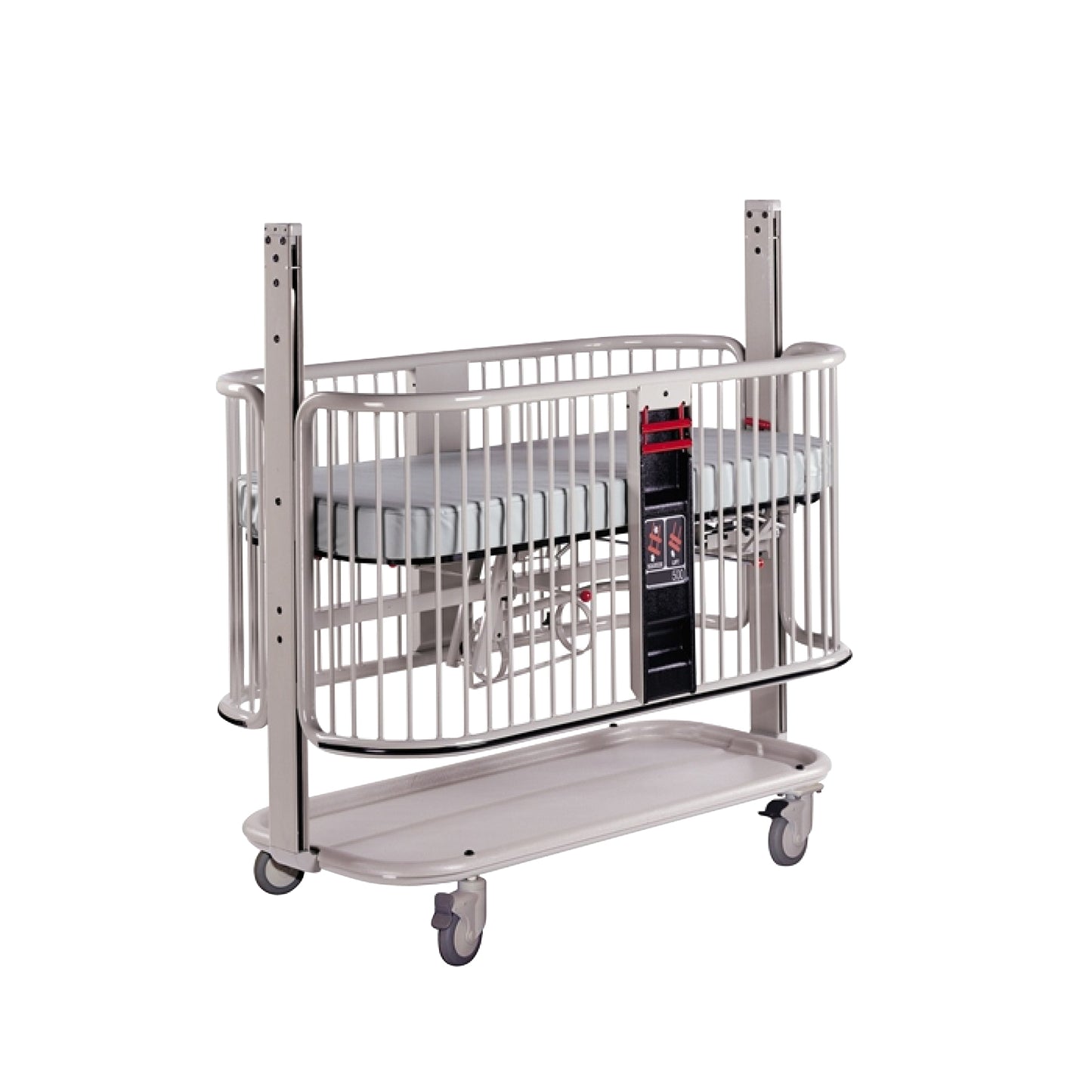

The Pedigo Model 500 Pediatric Crib Stretcher combines pediatric crib containment with the mobility and positioning functions of a fixed-height transport stretcher. Pedigo specifies the Model 500 for supporting and transporting patients in hospitals, clinics, ambulatory surgery centers, and examination or treatment environments.
What’s Included
- 1× refurbished Pedigo Model 500 Pediatric Crib Stretcher
Configuration note: Mattress, I.V. pole, security top, bumper pads, oxygen holder, utility shelf, infusion-pump adapter, and other accessories should be treated as configuration-dependent unless specifically confirmed with the unit.
Product Description
The Pedigo Model 500 is a fixed-height pediatric crib stretcher with adjustable Fowler positioning, Trendelenburg and reverse Trendelenburg positioning, full-length drop-down side rails, and 5-inch casters for patient transport.
The counterbalanced side rails use a one-handed release system and have 2-inch spacing between the vertical bars. The two-post support design provides broad access to the patient while the raised rails provide pediatric containment.
- 200 lb (91 kg) maximum patient weight
- Manufacturer specifies use only for children 35 in (89 cm) tall or shorter
- One-handed, counterbalanced side-rail operation
- 2-inch spacing between side-rail bars
- Fowler positions at 0°, 20°, and 30°
- Trendelenburg positions at 0°, 5°, and 10°
- 5° reverse Trendelenburg position
- 5-inch casters with braking and steering functions
- Solid-pan litter top
- White powder-coat finish
- Rounded-corner frame design
- I.V. pole mounting locations; count varies between published Pedigo documents, so verify the exact unit
Maintenance note: Pedigo specifies daily preventive inspection to confirm safe and proper operation and recommends inspection by an authorized dealer every six months. Malfunctioning or damaged components should be corrected before the stretcher is returned to use.
Specifications — Pedigo Model 500 Pediatric Crib Stretcher
| Manufacturer | Pedigo Products, Inc. |
| Model | 500 Pediatric Crib Stretcher |
| United Infusion SKU | 500-001 |
| Product Type | Pediatric crib stretcher |
| Maximum Patient Weight | 200 lb (91 kg) |
| Patient Height Restriction | Do not use for a child taller than 35 in (89 cm) |
| Patient Surface | 26 × 56¼ in (66 × 143 cm) per the formal 2020 Installation & Operation Manual |
| Overall Length | 60 in (152 cm) |
| Overall Width | 30¼ in (77 cm) |
| Fixed Litter Height | 33¼ in (84 cm) |
| Top of Crib Height | 59½ in (151 cm) |
| Height with Optional Security Top | 76¾ in (195 cm) |
| Fowler Positions | 0°, 20°, 30° |
| Trendelenburg Positions | 0°, 5°, 10° |
| Reverse Trendelenburg | 5° |
| Side-Rail Intermediate Stop | 13¾ in (35 cm) per the formal specification table |
| Side-Rail Bar Spacing | 2 in |
| Casters | 5 in (13 cm); 2020 formal manual specifies three Total Lock casters and one Steer caster. A later Pedigo brochure describes two locking casters and a steering caster. Verify the exact unit. |
| I.V. Pole Receptacles | 2020 formal manual specifies four sockets; a later Pedigo brochure lists two receptacles. Verify the exact unit revision/configuration. |
| Litter Top | Solid pan |
| Finish | White powder coat |
| Condition | Refurbished |
| Seller Warranty | 1-Year Warranty Included |
Product Manual
Pedigo's official Model 500 Installation & Operation Manual covers installation, operation, positioning, side-rail use, maintenance, authorized accessories, and specifications.
Pedigo Model 500 Pediatric Crib Stretcher Installation & Operation Manual
