1. Visual Inspection
Each pump is examined for external damage, cracks, and signs of wear on the body and components. Cosmetic issues and potential safety concerns are noted for further action.

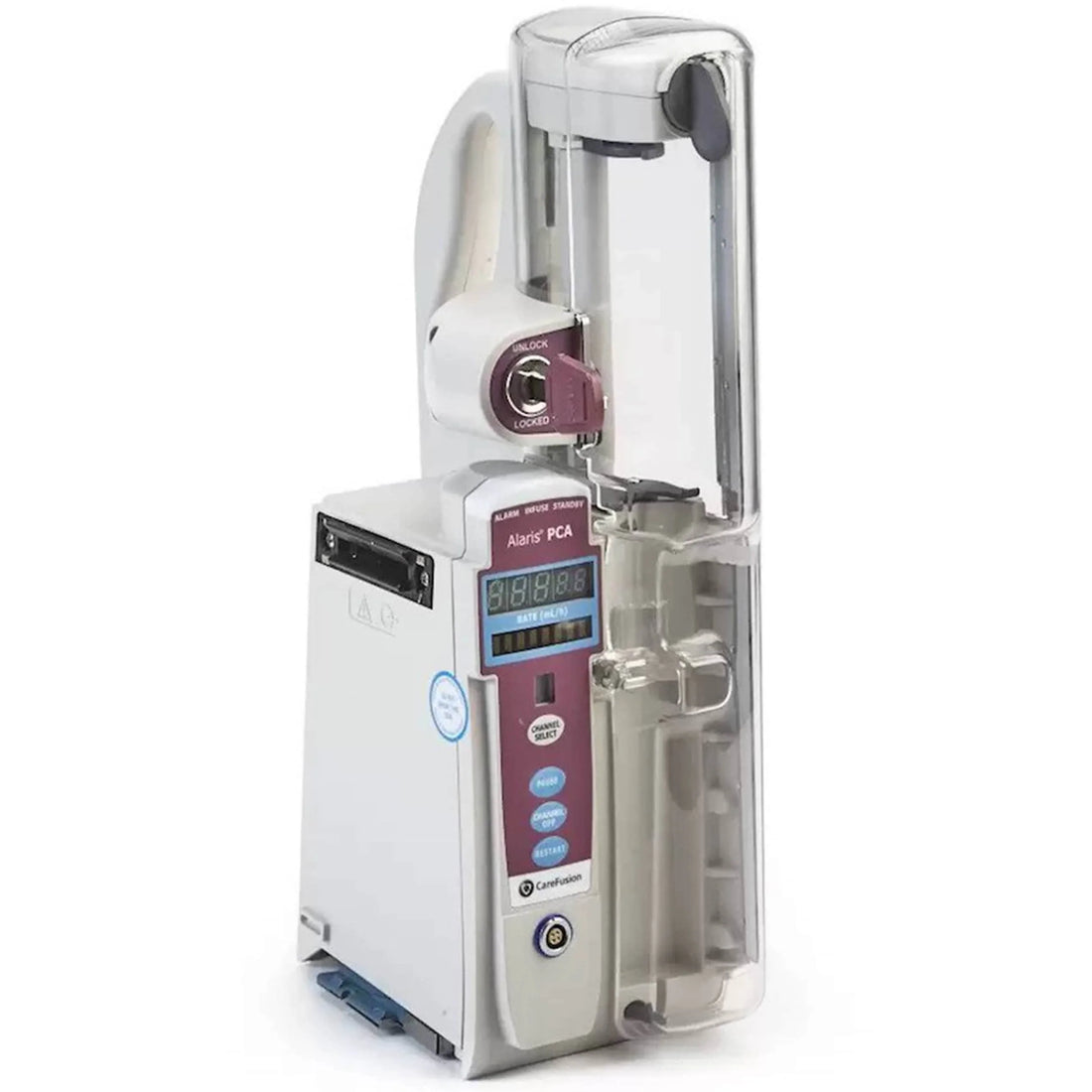

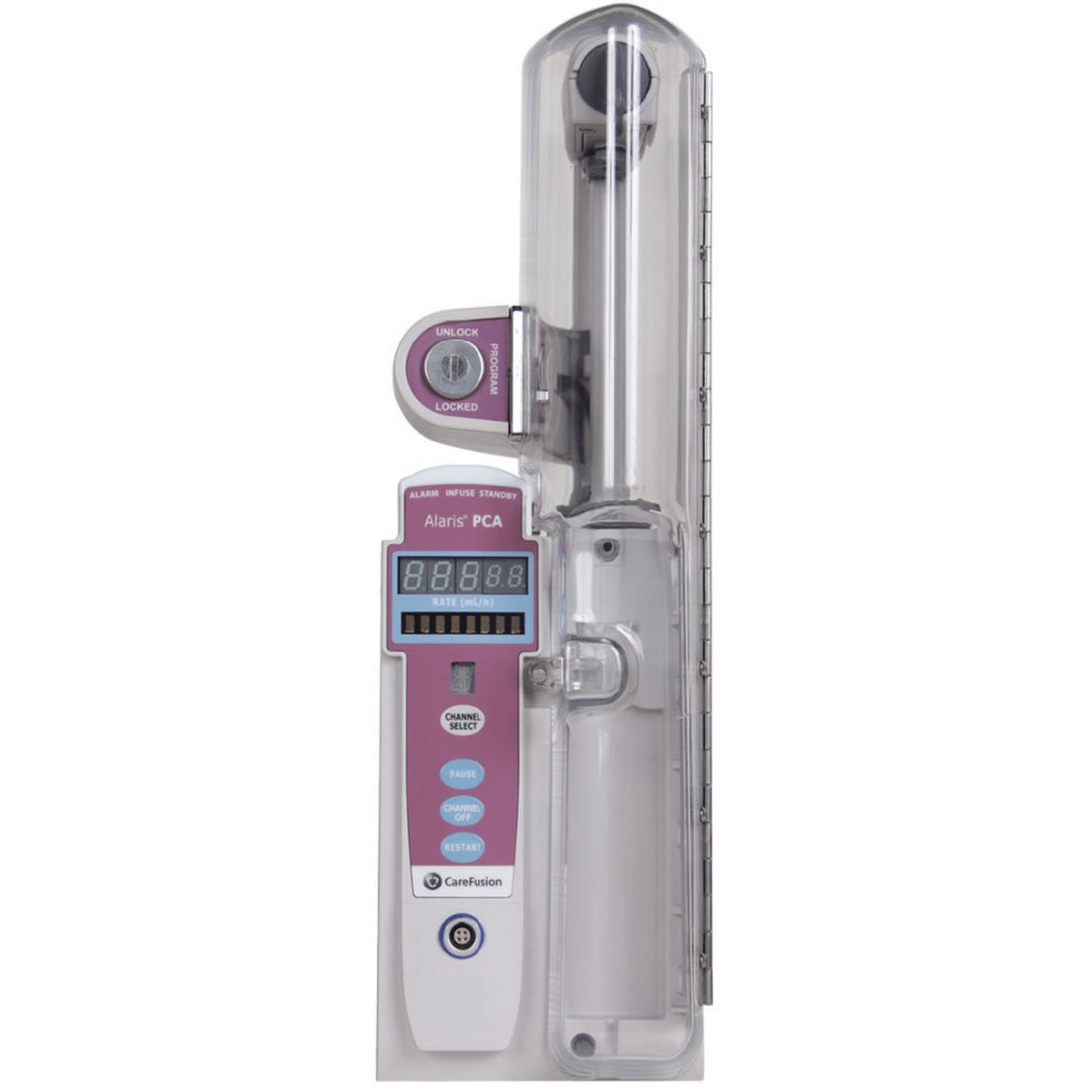

Refurbished Carefusion Alaris 8120 PCA Module
✓ In stock
$1,225.00
Request a Quote
✓ Fully Refurbished
✓ 1-Year Warranty
✓ Biomed Tested & Calibrated
✓ Ships Within 48 Hours
- PCA delivery: continuous, dose-only, continuous + PCA, bolus
- Flow rate 0.1–999 mL/h • ±2% rate accuracy
- Requires Alaris 8015 PC Unit (sold separately)
Alaris 8120 PCA Module — Patient-Controlled Analgesia for the Alaris System
Refurbished • 1-Year Warranty • Syringe-based PCA module — attaches to the Alaris 8015 PC Unit
The Alaris 8120 PCA Module brings syringe-based patient-controlled analgesia to the Alaris / Medley modular system — delivering pain-management medication in a secure, locked clear case with patient handset dosing. It attaches to the Alaris 8015 PC Unit and is programmed through its common interface, protected by the Guardrails® Suite MX safety software on the PC Unit. Note: this module requires an Alaris PC Unit to operate; it is not a standalone pump.
Product Description
Fully refurbished and backed by a 1-year warranty — keys and bolus cords included. The 8120 supports five delivery modes — continuous, PCA dose-only, continuous + PCA, loading dose, and bolus — with a locking clear case that secures the syringe and medication against tampering. Delivers 0.1–999 mL/h at ±2% rate accuracy, with 3 selectable occlusion-pressure thresholds.
- Syringe-based PCA (patient-controlled analgesia) module — Model 8120
- Five delivery modes: continuous, PCA dose-only, continuous + PCA, loading dose, bolus
- Flow rate 0.1–999 mL/h • ±2% rate accuracy
- Locked clear case with keys and patient bolus handset included
- Attaches to the Alaris 8015 PC Unit (sold separately)
Specifications
| Model | 8120 — Alaris PCA Module |
| Type | Syringe-based PCA (patient-controlled analgesia) module — requires Alaris 8015 PC Unit |
| Delivery Modes | Continuous, PCA dose-only, continuous + PCA, loading dose, bolus |
| Dimensions | 4.5″ W × 15″ H × 7.5″ D (≈11.4 × 38.1 × 19.1 cm) |
| Weight | 5.5 lb (~2.5 kg) |
| Flow Rate | 0.1–999 mL/h |
| Syringe Sizes | 20 mL / 30–35 mL / 50–60 mL (rate caps vary by size) |
| Rate Accuracy | ±2% of full-scale plunger travel |
| Occlusion Pressure | 3 selectable thresholds (low/med/high) |
| Requires | Alaris 8015 PC Unit (sold separately) |
| Condition | Refurbished — 1-Year Warranty (United Infusion) |
Refurbishing Process
At United Infusion, we follow a comprehensive refurbishing process for infusion pumps to help ensure they operate safely and reliably. This process follows manufacturer guidelines and sanitation standards to meet high quality expectations.
Below are the key steps of our refurbishing process:
2. Disassembly
The pump is carefully disassembled to access internal components, including the motor, gears, tubing pathways, and electronics. All parts are handled with care to avoid added damage.
3. Cleaning & Sanitization
Appropriate disinfectants are used to thoroughly clean all parts and remove residual fluids, blood, or debris. This step follows sanitation standards to help ensure the device is free from contaminants.
4. Component Inspection & Replacement
Individual parts, including the motor, battery, display screen, buttons, and connectors, are inspected for wear, damage, or malfunction. Worn or damaged components are replaced with manufacturer-approved parts.
5. Calibration & Software Update
The pump is adjusted to support accurate fluid delivery rates using standardized testing methods, and calibration is verified against manufacturer specifications. The latest compatible software version is then installed to improve functionality.
6. Testing, Reassembly & Final Check
The pump goes through functional testing, including alarms, flow rate accuracy, occlusion detection, and bolus delivery. It is then reassembled, connections are checked, and a final visual and functional inspection is completed to confirm it meets safety standards and customer requirements.
"We needed our syringe pumps serviced for scheduled maintenance to continue to provide safe care. In the past, we had to send them off with a 6 weeks turn around time. Then we found United Infusion. 30 min down the road, 24 hr turn around and 30 minutes down the road. We are extremely grateful!!!"
Need a quote, service help, or a similar model?
United Infusion supports equipment sales, repair, and rentals. Our team can help match the right unit, answer product questions, and support your equipment needs.
