1. Visual Inspection
Each pump is examined for external damage, cracks, and signs of wear on the body and components. Cosmetic issues and potential safety concerns are noted for further action.
Refurbished Baxter Sigma Spectrum Infusion IV Pump Software 6.02
✓ In stock
$997.00
Request a Quote
✓ Fully Refurbished
✓ 1-Year Warranty
✓ Biomed Tested & Calibrated
✓ Ships Within 48 Hours
- Flow rate 0.5–999 mL/h • ±5% rate accuracy
- Master Drug Library with DERS — software v6.02
- ≈1.6–2.2 lb • ~8 hr battery

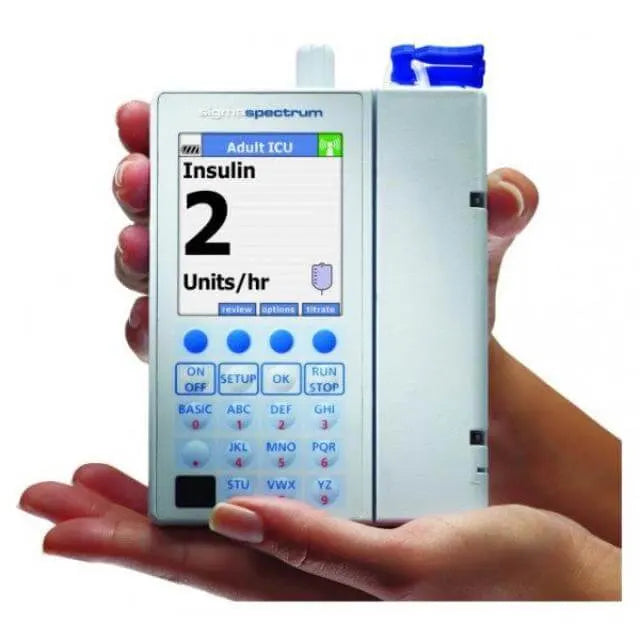

Baxter SIGMA Spectrum Infusion System — Software v6.02
Refurbished • 1-Year Warranty • Single-channel large-volume smart pump with Master Drug Library dose error reduction
The Baxter SIGMA Spectrum is a compact single-channel smart infusion pump — the predecessor to Baxter’s Spectrum IQ Infusion System — built around a Master Drug Library with dose error reduction (DERS). This listing carries software v6.02 — the same pump as the v6.05 / v8.0 listings, differing only in firmware / drug-library version. At roughly two pounds it’s one of the lightest large-volume pumps in service, and it runs Baxter’s standard Spectrum IV administration sets.
Product Description
Fully refurbished and backed by a 1-year warranty. The Spectrum delivers 0.5–999 mL/h with ±5% rate accuracy (±0.1 mL/h below 2 mL/h), runs about 8 hours on battery at 125 mL/h, and pairs a bright color display with on-board digital help screens for a rapid, intuitive workflow.
- Single-channel large-volume smart pump — software v6.02
- Flow rate 0.5–999 mL/h • ±5% accuracy (2–999 mL/h)
- Master Drug Library with DERS • bi-directional Wi-Fi (wireless-battery versions)
- Uses Baxter’s standard Spectrum IV administration sets
Specifications
| Manufacturer | Baxter |
| Model | SIGMA Spectrum Infusion System (predecessor to Spectrum IQ) |
| Type | Single-channel large-volume smart infusion pump |
| Software Version | v6.02 — same pump as the v6.05 / v8.0 listings, different firmware / drug-library version |
| Dimensions | Wireless battery: 6.3″ H × 4.2″ W × 2.5″ D; standard battery: 5.8″ H × 4.2″ W × 2.5″ D (add ~2.2″ W with pole clamp) |
| Weight | ~25.5–34.5 oz (≈1.6–2.2 lb) depending on battery & pole clamp |
| Flow Rate | 0.5–999 mL/h |
| Rate Accuracy | ±5% (2–999 mL/h); ±0.1 mL/h (0.5–1.9 mL/h) |
| Battery | Lithium-Ion 1800 mAh, 7.2 V (SIGMA PN 35702) or Wireless Battery Module; ~8 hr at 125 mL/h |
| Safety Software | Master Drug Library with dose error reduction (DERS) |
| Connectivity | Bi-directional Wi-Fi (b/g) on wireless-battery versions |
| Administration Sets | Baxter Spectrum IV administration sets |
| Condition | Refurbished — 1-Year Warranty (United Infusion) |
📄 Download Manual — SIGMA Spectrum v6.05 (PDF) • Quick Start Guide (PDF)
Refurbishing Process
At United Infusion, we follow a comprehensive refurbishing process for infusion pumps to help ensure they operate safely and reliably. This process follows manufacturer guidelines and sanitation standards to meet high quality expectations.
Below are the key steps of our refurbishing process:
2. Disassembly
The pump is carefully disassembled to access internal components, including the motor, gears, tubing pathways, and electronics. All parts are handled with care to avoid added damage.
3. Cleaning & Sanitization
Appropriate disinfectants are used to thoroughly clean all parts and remove residual fluids, blood, or debris. This step follows sanitation standards to help ensure the device is free from contaminants.
4. Component Inspection & Replacement
Individual parts, including the motor, battery, display screen, buttons, and connectors, are inspected for wear, damage, or malfunction. Worn or damaged components are replaced with manufacturer-approved parts.
5. Calibration & Software Update
The pump is adjusted to support accurate fluid delivery rates using standardized testing methods, and calibration is verified against manufacturer specifications. The latest compatible software version is then installed to improve functionality.
6. Testing, Reassembly & Final Check
The pump goes through functional testing, including alarms, flow rate accuracy, occlusion detection, and bolus delivery. It is then reassembled, connections are checked, and a final visual and functional inspection is completed to confirm it meets safety standards and customer requirements.
"We needed our syringe pumps serviced for scheduled maintenance to continue to provide safe care. In the past, we had to send them off with a 6 weeks turn around time. Then we found United Infusion. 30 min down the road, 24 hr turn around and 30 minutes down the road. We are extremely grateful!!!"
Need a quote, service help, or a similar model?
United Infusion supports equipment sales, repair, and rentals. Our team can help match the right unit, answer product questions, and support your equipment needs.
