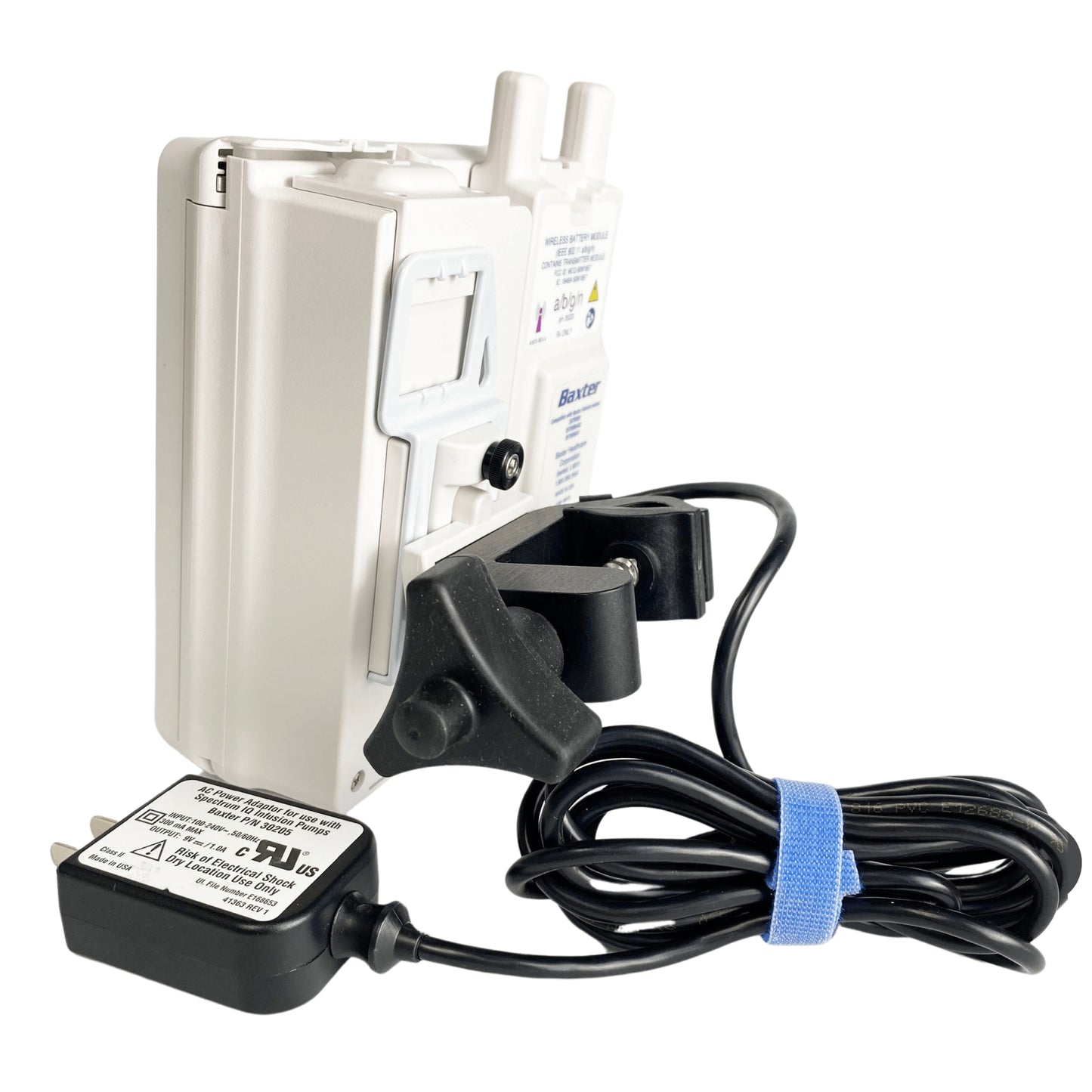

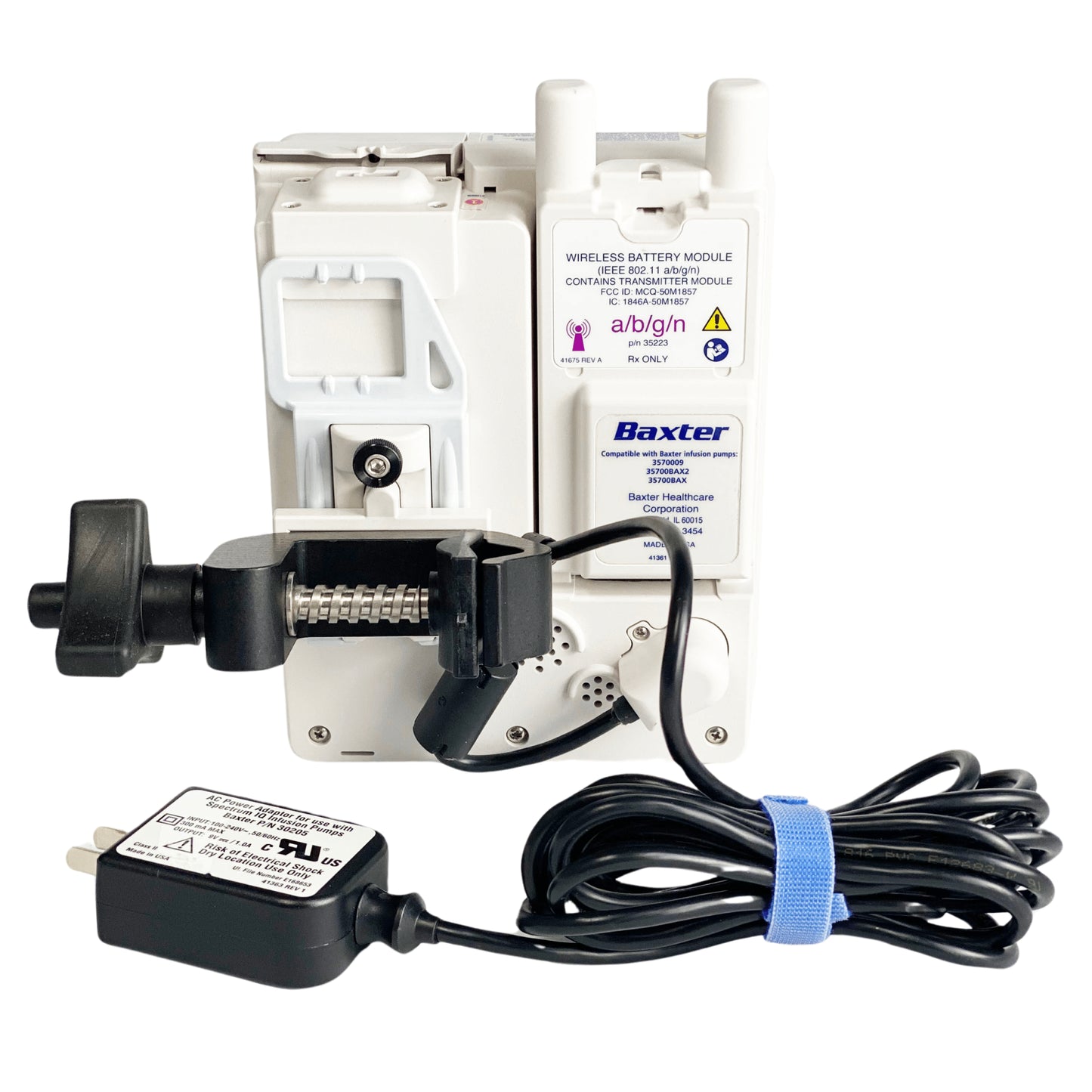

Spectrum IQ Infusion System
✓ In stock
$2,395.00
Request a Quote- Flow rate 0.1–999 mL/h • VTBI 0.1–9999 mL
- ±5% rate accuracy • occlusion 50–525 mmHg
- Requires Alaris 8015 PC Unit (sold separately)
Alaris 8100 LVP Pump Module — Large-Volume Pump for the Alaris System
Refurbished • 1-Year Warranty • Single-channel large-volume pump module — attaches to the Alaris 8015 PC Unit
The Alaris 8100 LVP Pump Module is the large-volume infusion workhorse of the Alaris / Medley modular system. It attaches to the Alaris 8015 PC Unit and is programmed through its common interface — add up to four modules per PC Unit and manage every infusion from a single screen. Note: this module requires an Alaris PC Unit to operate; it is not a standalone pump.
Product Description
Fully refurbished and backed by a 1-year warranty. The 8100 module delivers 0.1–999 mL/h with ±5% rate accuracy and user-selectable occlusion pressure from 50 to 525 mmHg — a compact 2.5 lb channel you can add wherever your Alaris fleet needs more capacity.
- Single-channel large-volume pump (LVP) module — Model 8100
- Flow rate 0.1–999 mL/h • VTBI 0.1–9999 mL
- User-selectable occlusion pressure: 50–525 mmHg
- Attaches to the Alaris 8015 PC Unit (sold separately)
Specifications
| Model | 8100 — Alaris LVP (large-volume pump) module |
| Type | Single-channel large-volume pump module — requires Alaris 8015 PC Unit |
| Dimensions | 3.3″ W × 8.9″ H × 5.5″ D (8.4 × 22.6 × 14 cm) |
| Weight | ~2.5 lb (1.13 kg) |
| Flow Rate | 0.1–999 mL/h |
| Volume to Be Infused (VTBI) | 0.1–9999 mL |
| Rate Accuracy | ±5% (±5.5% at < 1 mL/h) |
| Occlusion Pressure | User-selectable 50–525 mmHg |
| Requires | Alaris 8015 PC Unit (sold separately) |
| Condition | Refurbished — 1-Year Warranty (United Infusion) |
📄 Download Manual — Alaris 8100 Pump Module, Version 5 (PDF) • Quick Start Guide (PDF)
"We needed our syringe pumps serviced for scheduled maintenance to continue to provide safe care. In the past, we had to send them off with a 6 weeks turn around time. Then we found United Infusion. 30 min down the road, 24 hr turn around and 30 minutes down the road. We are extremely grateful!!!"
Need a quote, service help, or a similar model?
United Infusion supports equipment sales, repair, and rentals. Our team can help match the right unit, answer product questions, and support your equipment needs.
