1. Visual Inspection
Each pump is examined for external damage, cracks, and signs of wear on the body and components. Cosmetic issues and potential safety concerns are noted for further action.

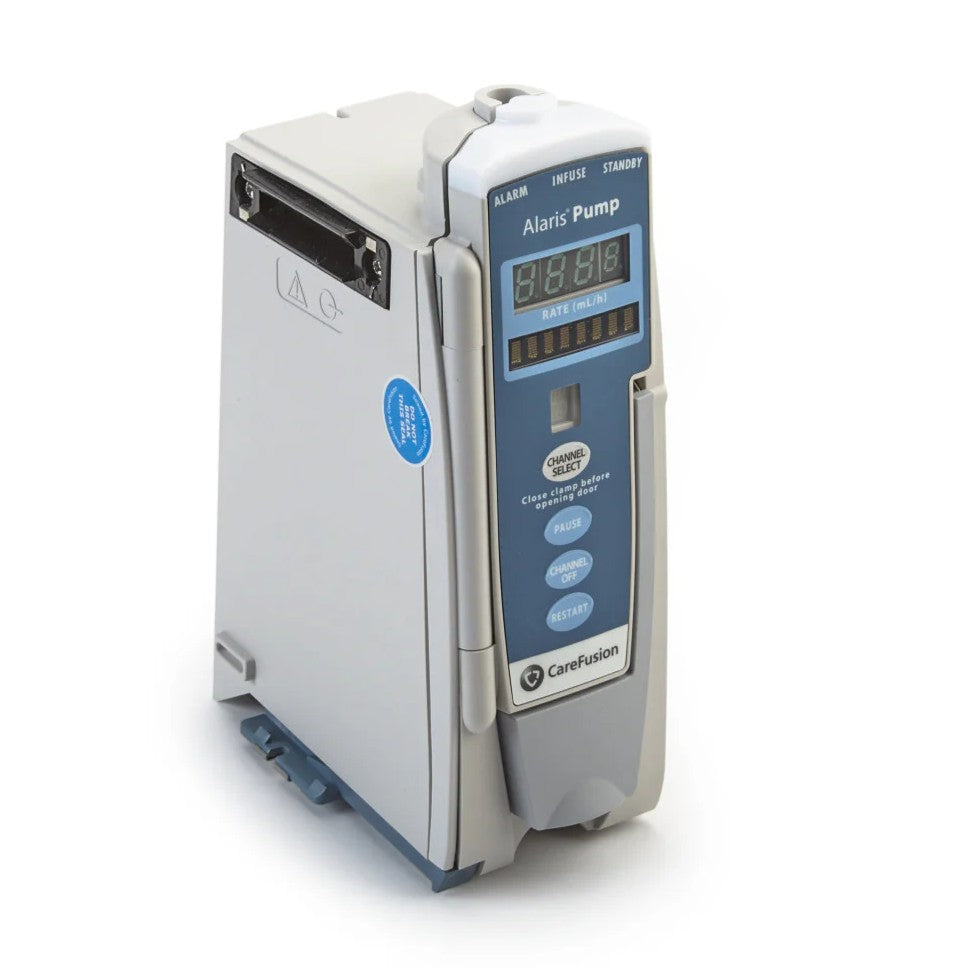

Refurbished Carefusion Alaris 8100 Infusion Pump
✓ In stock
$695.00
Request a Quote
✓ Fully Refurbished
✓ 1-Year Warranty
✓ Biomed Tested & Calibrated
✓ Ships Within 48 Hours
- Flow rate 0.1–999 mL/h • VTBI 0.1–9999 mL
- ±5% rate accuracy • occlusion 50–525 mmHg
- Requires Alaris 8015 PC Unit (sold separately)

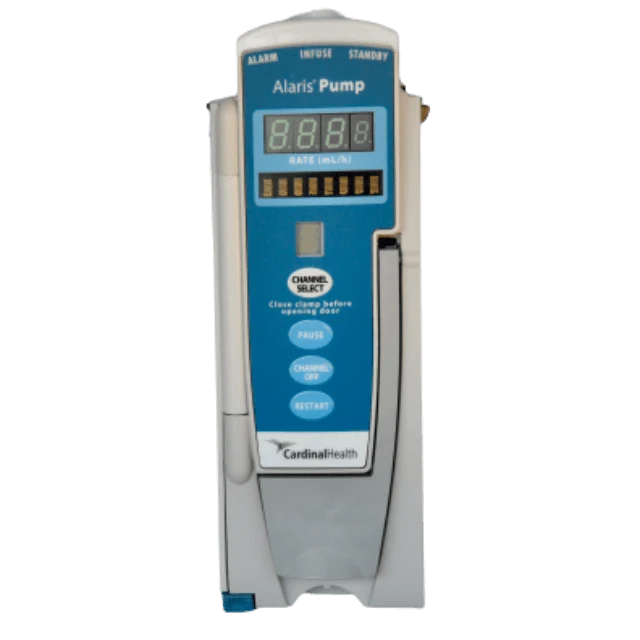

Alaris 8100 LVP Pump Module — Large-Volume Pump for the Alaris System
Refurbished • 1-Year Warranty • Single-channel large-volume pump module — attaches to the Alaris 8015 PC Unit
The Alaris 8100 LVP Pump Module is the large-volume infusion workhorse of the Alaris / Medley modular system. It attaches to the Alaris 8015 PC Unit and is programmed through its common interface — add up to four modules per PC Unit and manage every infusion from a single screen. Note: this module requires an Alaris PC Unit to operate; it is not a standalone pump.
Product Description
Fully refurbished and backed by a 1-year warranty. The 8100 module delivers 0.1–999 mL/h with ±5% rate accuracy and user-selectable occlusion pressure from 50 to 525 mmHg — a compact 2.5 lb channel you can add wherever your Alaris fleet needs more capacity.
- Single-channel large-volume pump (LVP) module — Model 8100
- Flow rate 0.1–999 mL/h • VTBI 0.1–9999 mL
- User-selectable occlusion pressure: 50–525 mmHg
- Attaches to the Alaris 8015 PC Unit (sold separately)
Specifications
| Model | 8100 — Alaris LVP (large-volume pump) module |
| Type | Single-channel large-volume pump module — requires Alaris 8015 PC Unit |
| Dimensions | 3.3″ W × 8.9″ H × 5.5″ D (8.4 × 22.6 × 14 cm) |
| Weight | ~2.5 lb (1.13 kg) |
| Flow Rate | 0.1–999 mL/h |
| Volume to Be Infused (VTBI) | 0.1–9999 mL |
| Rate Accuracy | ±5% (±5.5% at < 1 mL/h) |
| Occlusion Pressure | User-selectable 50–525 mmHg |
| Requires | Alaris 8015 PC Unit (sold separately) |
| Condition | Refurbished — 1-Year Warranty (United Infusion) |
📄 Download Manual — Alaris 8100 Pump Module, Version 5 (PDF) • Quick Start Guide (PDF)
Refurbishing Process
At United Infusion, we follow a comprehensive refurbishing process for infusion pumps to help ensure they operate safely and reliably. This process follows manufacturer guidelines and sanitation standards to meet high quality expectations.
Below are the key steps of our refurbishing process:
2. Disassembly
The pump is carefully disassembled to access internal components, including the motor, gears, tubing pathways, and electronics. All parts are handled with care to avoid added damage.
3. Cleaning & Sanitization
Appropriate disinfectants are used to thoroughly clean all parts and remove residual fluids, blood, or debris. This step follows sanitation standards to help ensure the device is free from contaminants.
4. Component Inspection & Replacement
Individual parts, including the motor, battery, display screen, buttons, and connectors, are inspected for wear, damage, or malfunction. Worn or damaged components are replaced with manufacturer-approved parts.
5. Calibration & Software Update
The pump is adjusted to support accurate fluid delivery rates using standardized testing methods, and calibration is verified against manufacturer specifications. The latest compatible software version is then installed to improve functionality.
6. Testing, Reassembly & Final Check
The pump goes through functional testing, including alarms, flow rate accuracy, occlusion detection, and bolus delivery. It is then reassembled, connections are checked, and a final visual and functional inspection is completed to confirm it meets safety standards and customer requirements.
"We needed our syringe pumps serviced for scheduled maintenance to continue to provide safe care. In the past, we had to send them off with a 6 weeks turn around time. Then we found United Infusion. 30 min down the road, 24 hr turn around and 30 minutes down the road. We are extremely grateful!!!"
Need a quote, service help, or a similar model?
United Infusion supports equipment sales, repair, and rentals. Our team can help match the right unit, answer product questions, and support your equipment needs.
