1. Visual Inspection
Each pump is examined for external damage, cracks, and signs of wear on the body and components. Cosmetic issues and potential safety concerns are noted for further action.

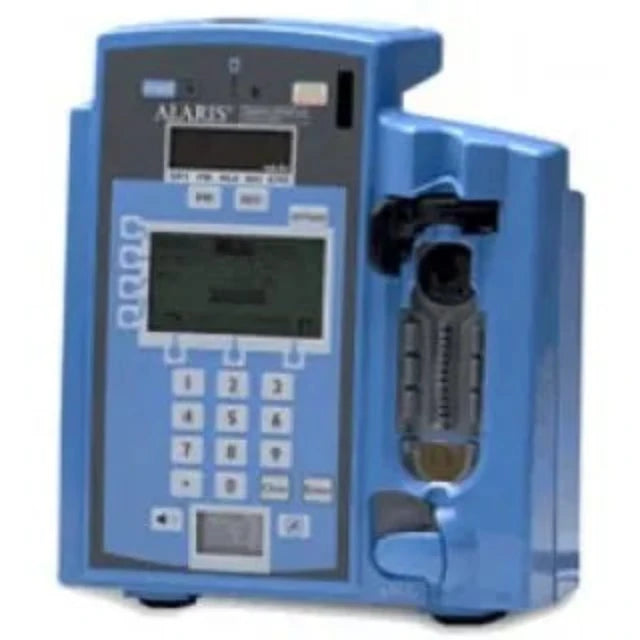

Refurbished Alaris Signature 7130 Infusion IV Pump
✓ In stock
Contact us for current pricing and availability.
Request a Quote
✓ Fully Refurbished
✓ 1-Year Warranty
✓ Biomed Tested & Calibrated
✓ Primary + Secondary Delivery
- Single-channel volumetric pump — standalone
- Primary 0.1–999.9 mL/h • secondary (piggyback) to 270 mL/h
- Adjustable occlusion alarm 25–600 mmHg
Alaris Signature Edition 7130 — Single-Channel Volumetric Infusion Pump
Refurbished • 1-Year Warranty • Standalone volumetric pump for general IV, blood, enteral, TPN & lipid infusions
The Alaris Signature Edition 7130 (also sold as the Signature Gold 7130) is a dependable single-channel volumetric workhorse from the Alaris / IVAC line — suited to general IV infusions, antibiotics, blood, enteral feeding, TPN and hyperalimentation, and lipids. A true standalone pump with both primary and secondary (piggyback) delivery on its one channel.
Product Description
Fully refurbished and backed by a 1-year warranty. The 7130 delivers 0.1–999.9 mL/h on the primary line (secondary 0.1–270 mL/h) with ±5% rate accuracy, an adjustable downstream occlusion alarm from 25–600 mmHg, and a rechargeable NiCd battery for transport between AC outlets.
- Single-channel volumetric infusion pump — Model 7130 (catalog 77130)
- Primary 0.1–999.9 mL/h • Secondary (piggyback) 0.1–270 mL/h
- VTBI: primary 0.1–9999.9 mL • secondary 0.1–999.9 mL
- Adjustable downstream occlusion alarm: 25–600 mmHg
Specifications
| Manufacturer | Alaris / IVAC / CareFusion |
| Model | 7130 (catalog 77130) — Signature Edition |
| Type | Single-channel volumetric infusion pump |
| Number of Channels | 1 |
| Dimensions | H 8.6″ × W 7.7″ × D 5.0″ (21.8 × 19.3 × 12.7 cm) |
| Weight | 6.85 lb (3.11 kg) |
| Flow Rate | Primary 0.1–999.9 mL/h; Secondary 0.1–270 mL/h |
| VTBI | Primary 0.1–9999.9 mL; Secondary 0.1–999.9 mL |
| Rate Accuracy | ±5% (>1 mL/h); ±6.5% (≤1 mL/h) |
| Occlusion Pressure | Downstream alarm adjustable 25–600 mmHg |
| Power / Battery | Rechargeable NiCd; AC 100–120 V, 50/60 Hz |
| Condition | Refurbished — 1-Year Warranty (United Infusion) |
📄 Download Manual — Alaris Signature Gold 7130B / 7230B (PDF)
Refurbishing Process
At United Infusion, we follow a comprehensive refurbishing process for infusion pumps to help ensure they operate safely and reliably. This process follows manufacturer guidelines and sanitation standards to meet high quality expectations.
Below are the key steps of our refurbishing process:
2. Disassembly
The pump is carefully disassembled to access internal components, including the motor, gears, tubing pathways, and electronics. All parts are handled with care to avoid added damage.
3. Cleaning & Sanitization
Appropriate disinfectants are used to thoroughly clean all parts and remove residual fluids, blood, or debris. This step follows sanitation standards to help ensure the device is free from contaminants.
4. Component Inspection & Replacement
Individual parts, including the motor, battery, display screen, buttons, and connectors, are inspected for wear, damage, or malfunction. Worn or damaged components are replaced with manufacturer-approved parts.
5. Calibration & Software Update
The pump is adjusted to support accurate fluid delivery rates using standardized testing methods, and calibration is verified against manufacturer specifications. The latest compatible software version is then installed to improve functionality.
6. Testing, Reassembly & Final Check
The pump goes through functional testing, including alarms, flow rate accuracy, occlusion detection, and bolus delivery. It is then reassembled, connections are checked, and a final visual and functional inspection is completed to confirm it meets safety standards and customer requirements.
"We needed our syringe pumps serviced for scheduled maintenance to continue to provide safe care. In the past, we had to send them off with a 6 weeks turn around time. Then we found United Infusion. 30 min down the road, 24 hr turn around and 30 minutes down the road. We are extremely grateful!!!"
Need a quote, service help, or a similar model?
United Infusion supports equipment sales, repair, and rentals. Our team can help match the right unit, answer product questions, and support your equipment needs.
