1. Visual Inspection
Each pump is examined for external damage, cracks, and signs of wear on the body and components. Cosmetic issues and potential safety concerns are noted for further action.
Refurbished Alaris CareFusion EtCO₂ Module 8300 Infusion IV Pump
In stock
$1,290.00
Fast Shipping Time
Refurbished by United Infusion
Tested and calibrated
1-Year Warranty Included
Service and repair support available
- Continuously monitors end-tidal CO₂, inspired CO₂, and respiratory rate
- Microstream sidestream capnography for intubated and nonintubated patients
- Waveform and trend display • configurable alarms • compatible Alaris PC Unit required

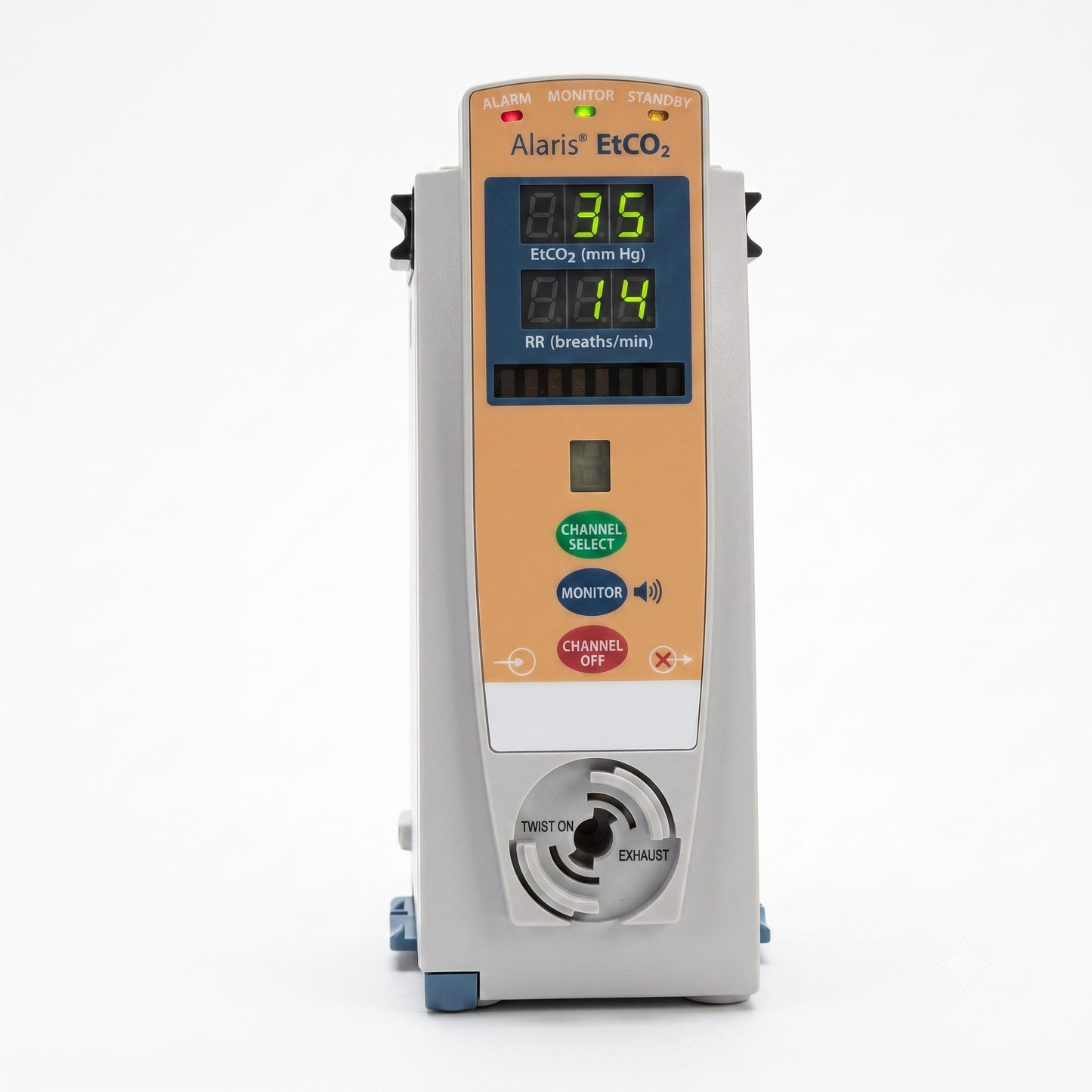

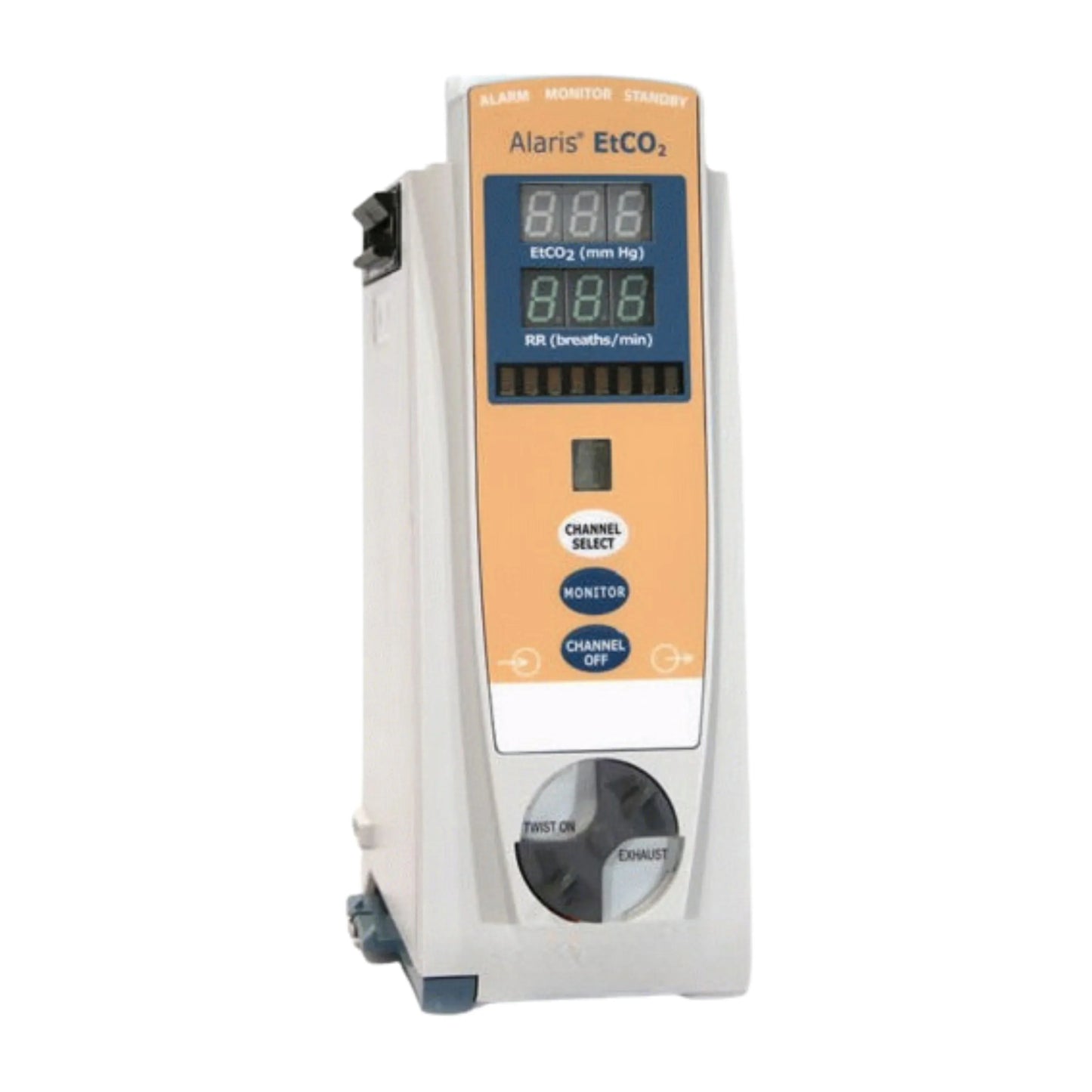

Alaris CareFusion EtCO₂ Module 8300 Infusion IV Pump
Refurbished Alaris 8300 EtCO₂ monitoring module • Microstream capnography • 1-Year Warranty
The Alaris CareFusion EtCO₂ Module 8300 is a sidestream capnography module for the Alaris modular system. It continuously monitors end-tidal carbon dioxide (EtCO₂), fractional inspired carbon dioxide (FiCO₂), and respiratory rate. The module must be connected to a compatible Alaris 8015 PC Unit for power, programming, alarm management, and system operation. It is a monitoring module and does not deliver IV fluids or medication by itself.
What’s Included
- 1× CareFusion Alaris 8300 EtCO₂ Module
- Alaris PC Unit, Microstream sampling disposables, and other modules are not included unless stated separately
Product Description
Refurbished and backed by a 1-year warranty, the Alaris 8300 provides continuous, noninvasive respiratory monitoring for adult, pediatric, and neonatal patients. It uses Microstream non-dispersive infrared spectroscopy and compatible sampling disposables to measure inhaled and exhaled gas from intubated or nonintubated patients. Only one EtCO₂ Module can be connected to an Alaris System at a time.
- Continuously measures EtCO₂, FiCO₂, and respiratory rate
- Displays a real-time CO₂ waveform and stored trend data through the connected PC Unit
- Provides audible and visual alarms for high or low EtCO₂, high FiCO₂, high or low respiratory rate, no breath, disposable conditions, and system faults
- Uses a nominal 50 mL/min sample flow and a 15-microliter microsample cell
- Microstream inline filtration helps remove moisture and patient secretions while preserving the CO₂ waveform
- Automatic zeroing and barometric pressure compensation support stable measurements without routine operator calibration
- PCA and EtCO₂ trend data can be viewed together when a compatible Alaris PCA Module is also connected
Specifications — CareFusion Alaris 8300 EtCO₂ Module
| Model | 8300 — Alaris EtCO₂ Module |
| Type | Sidestream capnography monitoring module |
| Measured Parameters | End-tidal carbon dioxide (EtCO₂), fractional inspired carbon dioxide (FiCO₂), and respiratory rate |
| Measurement Method | Microstream non-dispersive infrared spectroscopy |
| Patient Interface | Compatible Microstream sampling disposables for intubated and nonintubated patients |
| CO₂ Measurement Range | EtCO₂: 0–99 mmHg • FiCO₂: 0–99 mmHg |
| Respiratory Rate Range | 0–150 breaths per minute |
| CO₂ Accuracy | 0–38 mmHg: ±2 mmHg • 39–99 mmHg: ±(5% of reading + 0.08% for each 1 mmHg above 38 mmHg) |
| Respiratory Rate Accuracy | 0–70 bpm: ±1 bpm • 71–120 bpm: ±2 bpm • 121–150 bpm: ±3 bpm |
| Sampling Gas Flow | Nominally 50 mL/min, −7.5/+15 mL/min |
| Total System Response Time | 4.9 seconds typical, including a maximum rise time of 260 milliseconds |
| Warm-Up Time | 30 seconds typical |
| Waveform Sampling | 20 samples per second |
| Dimensions | 3.3″ W × 8.9″ H × 5.5″ D (8.4 × 22.6 × 14 cm) |
| Weight | 2.5 lb |
| Power and Control | Supplied through a compatible Alaris PC Unit; PC Unit sold separately |
| System Capacity | One EtCO₂ Module per Alaris System |
| Fluid Ingress Protection | IPX2, drip proof |
| Patient Population | Adult, pediatric, and neonatal patients as part of a configured Alaris System |
| Condition | Refurbished |
| Warranty | 1 year |
Product Manuals
Download the official BD quick reference guide for the Alaris 8300 EtCO₂ Module.
BD Alaris EtCO₂ Module v12 Quick Reference Guide Download PDF
In stock
$1,290.00
Fast Shipping Time
Refurbished by United Infusion
Tested and calibrated
1-Year Warranty Included
Service and repair support available
- Continuously monitors end-tidal CO₂, inspired CO₂, and respiratory rate
- Microstream sidestream capnography for intubated and nonintubated patients
- Waveform and trend display • configurable alarms • compatible Alaris PC Unit required
Alaris CareFusion EtCO₂ Module 8300 Infusion IV Pump
Refurbished Alaris 8300 EtCO₂ monitoring module • Microstream capnography • 1-Year Warranty
The Alaris CareFusion EtCO₂ Module 8300 is a sidestream capnography module for the Alaris modular system. It continuously monitors end-tidal carbon dioxide (EtCO₂), fractional inspired carbon dioxide (FiCO₂), and respiratory rate. The module must be connected to a compatible Alaris 8015 PC Unit for power, programming, alarm management, and system operation. It is a monitoring module and does not deliver IV fluids or medication by itself.
What’s Included
- 1× CareFusion Alaris 8300 EtCO₂ Module
- Alaris PC Unit, Microstream sampling disposables, and other modules are not included unless stated separately
Product Description
Refurbished and backed by a 1-year warranty, the Alaris 8300 provides continuous, noninvasive respiratory monitoring for adult, pediatric, and neonatal patients. It uses Microstream non-dispersive infrared spectroscopy and compatible sampling disposables to measure inhaled and exhaled gas from intubated or nonintubated patients. Only one EtCO₂ Module can be connected to an Alaris System at a time.
- Continuously measures EtCO₂, FiCO₂, and respiratory rate
- Displays a real-time CO₂ waveform and stored trend data through the connected PC Unit
- Provides audible and visual alarms for high or low EtCO₂, high FiCO₂, high or low respiratory rate, no breath, disposable conditions, and system faults
- Uses a nominal 50 mL/min sample flow and a 15-microliter microsample cell
- Microstream inline filtration helps remove moisture and patient secretions while preserving the CO₂ waveform
- Automatic zeroing and barometric pressure compensation support stable measurements without routine operator calibration
- PCA and EtCO₂ trend data can be viewed together when a compatible Alaris PCA Module is also connected
Specifications — CareFusion Alaris 8300 EtCO₂ Module
| Model | 8300 — Alaris EtCO₂ Module |
| Type | Sidestream capnography monitoring module |
| Measured Parameters | End-tidal carbon dioxide (EtCO₂), fractional inspired carbon dioxide (FiCO₂), and respiratory rate |
| Measurement Method | Microstream non-dispersive infrared spectroscopy |
| Patient Interface | Compatible Microstream sampling disposables for intubated and nonintubated patients |
| CO₂ Measurement Range | EtCO₂: 0–99 mmHg • FiCO₂: 0–99 mmHg |
| Respiratory Rate Range | 0–150 breaths per minute |
| CO₂ Accuracy | 0–38 mmHg: ±2 mmHg • 39–99 mmHg: ±(5% of reading + 0.08% for each 1 mmHg above 38 mmHg) |
| Respiratory Rate Accuracy | 0–70 bpm: ±1 bpm • 71–120 bpm: ±2 bpm • 121–150 bpm: ±3 bpm |
| Sampling Gas Flow | Nominally 50 mL/min, −7.5/+15 mL/min |
| Total System Response Time | 4.9 seconds typical, including a maximum rise time of 260 milliseconds |
| Warm-Up Time | 30 seconds typical |
| Waveform Sampling | 20 samples per second |
| Dimensions | 3.3″ W × 8.9″ H × 5.5″ D (8.4 × 22.6 × 14 cm) |
| Weight | 2.5 lb |
| Power and Control | Supplied through a compatible Alaris PC Unit; PC Unit sold separately |
| System Capacity | One EtCO₂ Module per Alaris System |
| Fluid Ingress Protection | IPX2, drip proof |
| Patient Population | Adult, pediatric, and neonatal patients as part of a configured Alaris System |
| Condition | Refurbished |
| Warranty | 1 year |
Product Manuals
Download the official BD quick reference guide for the Alaris 8300 EtCO₂ Module.
BD Alaris EtCO₂ Module v12 Quick Reference Guide Download PDF
Refurbishing Process
At United Infusion, we follow a comprehensive refurbishing process for infusion pumps to help ensure they operate safely and reliably. This process follows manufacturer guidelines and sanitation standards to meet high quality expectations.
Below are the key steps of our refurbishing process:
2. Disassembly
The pump is carefully disassembled to access internal components, including the motor, gears, tubing pathways, and electronics. All parts are handled with care to avoid added damage.
3. Cleaning & Sanitization
Appropriate disinfectants are used to thoroughly clean all parts and remove residual fluids, blood, or debris. This step follows sanitation standards to help ensure the device is free from contaminants.
4. Component Inspection & Replacement
Individual parts, including the motor, battery, display screen, buttons, and connectors, are inspected for wear, damage, or malfunction. Worn or damaged components are replaced with manufacturer-approved parts.
5. Calibration & Software Update
The pump is adjusted to support accurate fluid delivery rates using standardized testing methods, and calibration is verified against manufacturer specifications. The latest compatible software version is then installed to improve functionality.
6. Testing, Reassembly & Final Check
The pump goes through functional testing, including alarms, flow rate accuracy, occlusion detection, and bolus delivery. It is then reassembled, connections are checked, and a final visual and functional inspection is completed to confirm it meets safety standards and customer requirements.
