1. Visual Inspection
Each pump is examined for external damage, cracks, and signs of wear on the body and components. Cosmetic issues and potential safety concerns are noted for further action.
Refurbished Alaris 8200 SpO2 Infusion IV Pump
✓ In stock
Contact us for current pricing and availability.
Request a Quote
✓ Fully Refurbished
✓ 1-Year Warranty
✓ Biomed Tested & Calibrated
✓ Ships Within 48 Hours
- SpO2 1–100% • pulse rate 20–250 bpm
- Continuous, noninvasive monitoring on the PC Unit screen
- Requires Alaris 8015 PC Unit (sold separately)

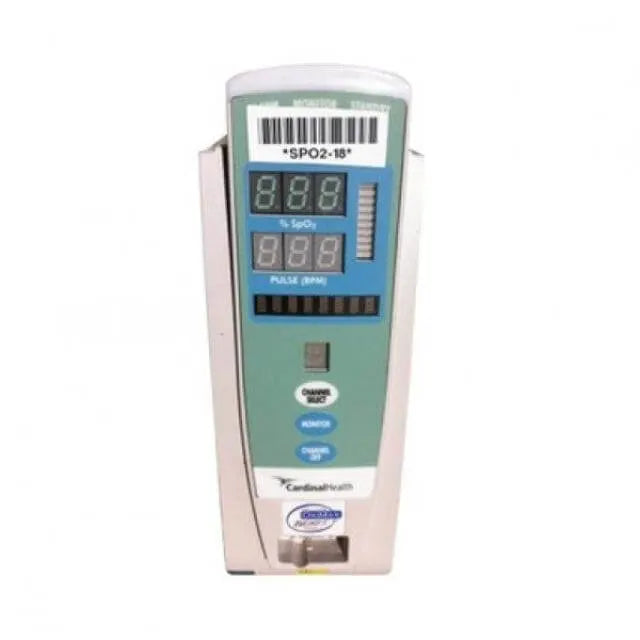

Alaris 8200 SpO2 Module — Pulse Oximetry Monitoring for the Alaris System
Refurbished • 1-Year Warranty • SpO2 monitoring module — attaches to the Alaris 8015 PC Unit
The Alaris 8200 SpO2 Module adds continuous, noninvasive pulse oximetry to the Alaris / Medley modular system. It attaches to the Alaris 8015 PC Unit and displays SpO2 and pulse rate on its common interface — monitor oxygen saturation right alongside your infusions, from a single screen. Note: this module requires an Alaris PC Unit to operate; it is not a standalone device.
Product Description
Fully refurbished and backed by a 1-year warranty. The 8200 module monitors SpO2 from 1–100% and pulse rate from 20–250 bpm — a compact ~2 lb channel that brings continuous oxygen-saturation monitoring to any Alaris PC Unit in your fleet.
- Pulse oximetry monitoring module (SpO2 + pulse rate) — Model 8200
- SpO2 range 1–100% • Pulse rate range 20–250 bpm
- Continuous, noninvasive monitoring through the Alaris PC Unit screen
- Attaches to the Alaris 8015 PC Unit (sold separately)
Specifications
| Model | 8200 — Alaris SpO2 (pulse oximetry) module |
| Type | Pulse oximetry module (SpO2 + pulse rate) — requires Alaris 8015 PC Unit |
| SpO2 Range | 1–100% |
| Pulse Rate Range | 20–250 bpm |
| Dimensions | 9″ H × 3.3″ W × 5.5″ D (≈22.9 × 8.4 × 14 cm) |
| Weight | ~2 lb (0.9 kg) |
| Requires | Alaris 8015 PC Unit (sold separately) |
| Condition | Refurbished — 1-Year Warranty (United Infusion) |
📄 Download Manual — Alaris Medley SpO2 Module (8220 Masimo), Version 7 (PDF)
Refurbishing Process
At United Infusion, we follow a comprehensive refurbishing process for infusion pumps to help ensure they operate safely and reliably. This process follows manufacturer guidelines and sanitation standards to meet high quality expectations.
Below are the key steps of our refurbishing process:
2. Disassembly
The pump is carefully disassembled to access internal components, including the motor, gears, tubing pathways, and electronics. All parts are handled with care to avoid added damage.
3. Cleaning & Sanitization
Appropriate disinfectants are used to thoroughly clean all parts and remove residual fluids, blood, or debris. This step follows sanitation standards to help ensure the device is free from contaminants.
4. Component Inspection & Replacement
Individual parts, including the motor, battery, display screen, buttons, and connectors, are inspected for wear, damage, or malfunction. Worn or damaged components are replaced with manufacturer-approved parts.
5. Calibration & Software Update
The pump is adjusted to support accurate fluid delivery rates using standardized testing methods, and calibration is verified against manufacturer specifications. The latest compatible software version is then installed to improve functionality.
6. Testing, Reassembly & Final Check
The pump goes through functional testing, including alarms, flow rate accuracy, occlusion detection, and bolus delivery. It is then reassembled, connections are checked, and a final visual and functional inspection is completed to confirm it meets safety standards and customer requirements.
"We needed our syringe pumps serviced for scheduled maintenance to continue to provide safe care. In the past, we had to send them off with a 6 weeks turn around time. Then we found United Infusion. 30 min down the road, 24 hr turn around and 30 minutes down the road. We are extremely grateful!!!"
Need a quote, service help, or a similar model?
United Infusion supports equipment sales, repair, and rentals. Our team can help match the right unit, answer product questions, and support your equipment needs.
